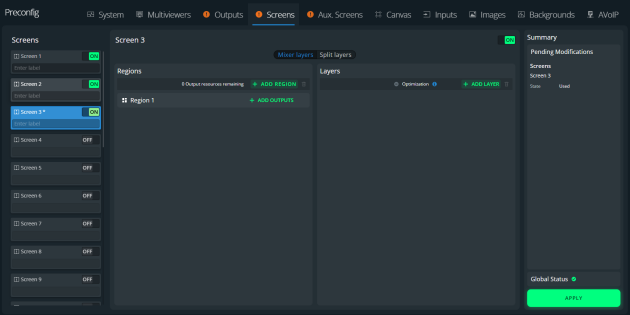

Create a Screen Preconfig > ScreensPrerequisiteAn output group must be set to Screen mode to be assigned in a Screen.ProcedureEnable the Screen and, if needed, enter the label.Select the Layer mode (Mixing layers or Split layers).Click on Add Outputs.OPTIONAL: Add regions.Add LayersClick Apply to save new configuration.Enable the Screen and, if needed, enter the label.⚓Select the Layer mode (Mixing layers or Split layers).⚓Click on Add Outputs.⚓Select the outputs for Region1 (by default) and click on Add Outputs.OPTIONAL: Add regions.⚓Repeat step 3 to assign outputs to this region.Example : To remove outputs⚓Click on .Add Layers⚓and assign them to regions if needed.Example : Layers quantity⚓The number of remaining layers is indicated.It depends on layers capacity and the use of Cut & Fill .For more information about using Cut & Fill, see Cut & Fill effect.Tip : Optimization⚓Hover over optimization for advice on the best layer allocation.For more information see Optimized mode.Extra : ⚓All pending changes are identified with a * and listed in the Summary. If needed, click to cancel pending changes.Click Apply to save new configuration.⚓A new screen is created and can be further adjusted in Canvas.
An output group must be set to Screen mode to be assigned in a Screen.

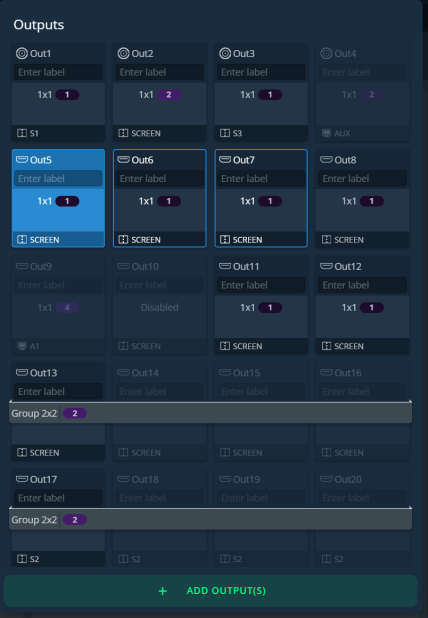

Select the outputs for Region1 (by default) and click on Add Outputs.
Repeat step 3 to assign outputs to this region.
Example : To remove outputs⚓
Click on
.
and assign them to regions if needed.
Example : Layers quantity⚓
The number of remaining layers is indicated.
It depends on layers capacity and the use of Cut & Fill
.
For more information about using Cut & Fill, see Cut & Fill effect.
Tip : Optimization⚓
Hover over optimization for advice on the best layer allocation.
For more information see Optimized mode.
Extra : ⚓

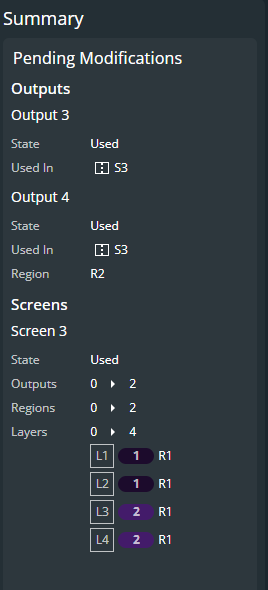

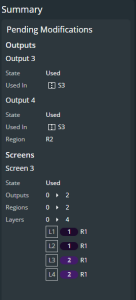

All pending changes are identified with a * and listed in the Summary. If needed, click
to cancel pending changes.
A new screen is created and can be further adjusted in Canvas.
