Patterns
Display patterns are used during the Screen configuration phase to test and control how outputs are displayed in Screens. Use patterns to identify and check if the displays are set correctly (color, position, resolution, etc.).

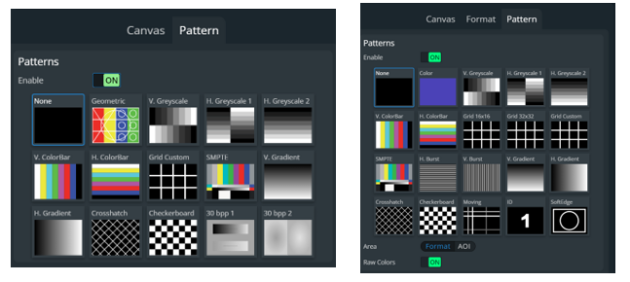

Example : Screen patterns and Output patterns⚓
It is possible to use Screen patterns and Output patterns.
Screen patterns are displayed on top of Output patterns.
Note :
Enabling a pattern overrides any content displayed in the output.
Make sure to keep all patterns disabled when they are not needed.
