Link setup
Example : Prerequisite⚓
The Link feature requires an installation, in the last output slot, of:
- an embedded Link “host” card (performed by AW Service Center)
- an exchangeable Link connector card.

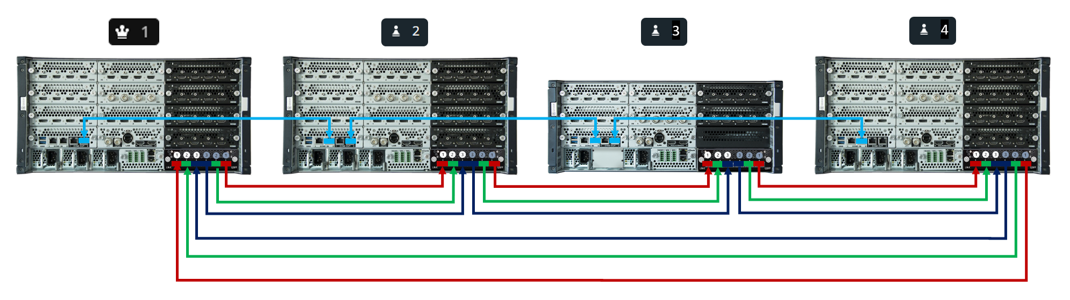

Cables required to connect a
Leader device with a
Follower device:⚓
- two sets of 3, color-coded, DAC link cables with QSFP connectors
- one RJ45 cable (light blue on the diagram below).
Note :
Each additional device requires a complementary set of 3 DAC link cables and an RJ45 cable.
