Sections hierarchy: Introducing LivePremierâ„¢ > Fixed parts

Fixed parts

The following parts are fixed and available on all LivePremier units (except the second Power supply unit on 4RU units).

Warning :

All parts other than input, output and control cards are fixed and should not be removed.

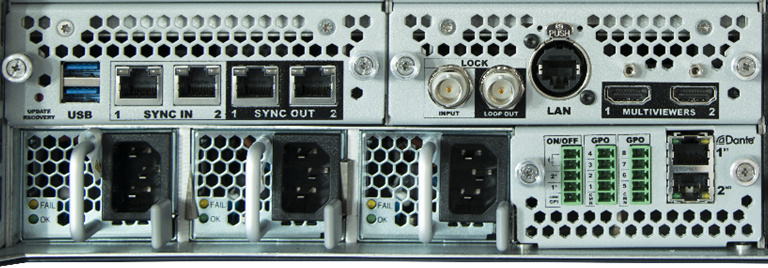

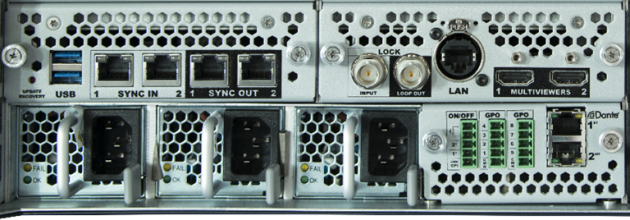

Fixed parts on all LivePremier units
Index
  • Optional control card with DisplayPort Multiviewer outputs
  • USB and sync ports
  • Framelock
  • GPIO
  • Dante audio connectors
  • Power supply units (PSU)
